Metal Tech Suzuki LT500 Quadracer Quadzilla 1987 A-arm kit

SKU: LT500-MT-AARMS-87
Our Price US$799.95
US$857.14
You Save 7%

 ****** Production lead time 10-14 months *****

• Custom built to your specifications

• If you don't see the "Add To Cart" button please phone order desk 888-801-8960

• If you are in the USA, ships from Arizona

• If you are in Canada, ships from Winnipeg, MB

Add to Wishlist
Suzuki LT500 Quadracer MT 1987 A-arm kit
This Kit is for model year 1987
Lower A-arm Styles:
• Standard: light weight no gusset design

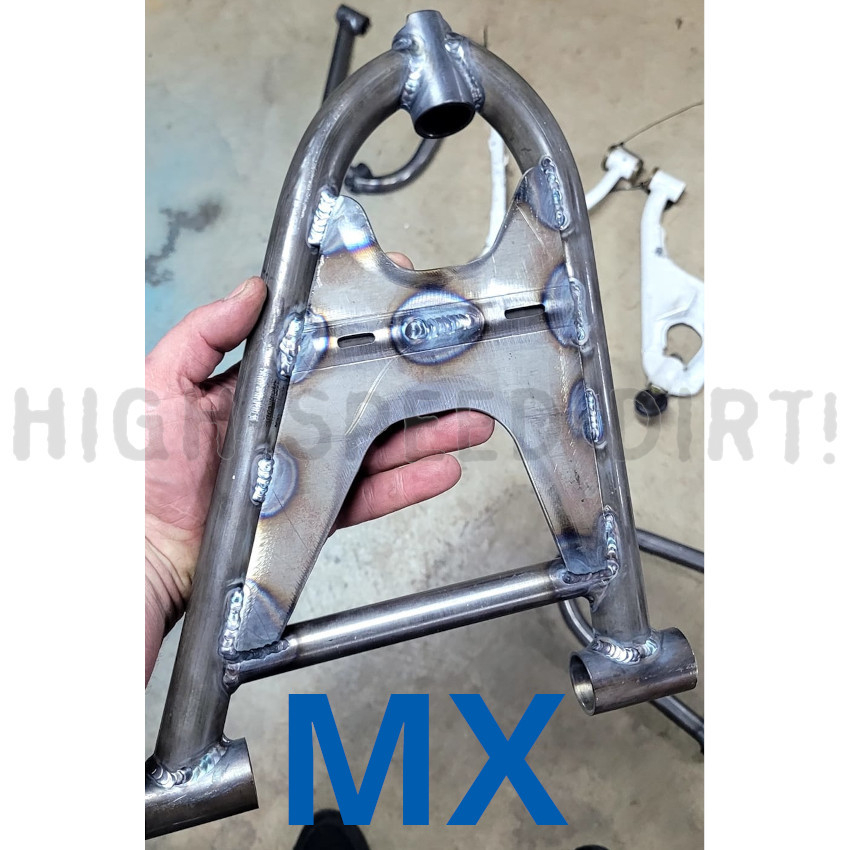

• MX Style: gusseting, bottom plating and extra cross bar at pivot tube $133

Lower A-arm Tubing Thickness:
• .065"
• .095".
A-arm Kit comes with (4) A-arms, (2) Tie Rods, (2) Top Ball Joints

Metal Tech A-arms feature ball joints that are- "gold" yellow dichromate metal plated to stop corrosion and a double wired on rubber boot to keep dirt and water out. Two ball joints supplied are replaceable, use your stock OEM lower ball joints. Spindle Reaming NOT Required with MTC Fab ball joints.

Wheel camber is adjustable on the threaded supplied 16mm upper ball joints.
A-arms are available in +1,+2, +3 widths and will be built to work with stock length shocks or 17" shocks

Extended A-arm features
    - increased cornering stability
    - increased wheel travel.

1987 upper a-arms
• requires 1988-1990 needle bearings
• reuse the stock OEM 1987 sleeves.

Stainless steel extended brake lines recommended for superior stopping power and they look great.

Finish: Bare Metal
Replaces the following

SUZUKI OEM ARM SUSPENSION, LOWER RH  52410-43B00 52410-43B10

SUZUKI OEM ARM SUSPENSION, UPPER RH  52430-43B00

SUZUKI OEM ARM SUSPENSION, LOWER LH  52420-43B00 52420-43B10

SUZUKI OEM ARM SUSPENSION, UPPER LH  52440-43B00
