Metal Tech Suzuki LT500 Quadracer Quadzilla (88-90) Z400 Adaptor A-arm kit

SKU: LT500-MT-AARMS-88-Z400
Our Price US$799.95
US$857.14
You Save 7%

1987 also available

 ****** Production lead time 10-14 months *****

• Custom built to your specifications

• If you don't see the "Add To Cart" button please phone order desk 888-801-8960

• If you are in the USA, ships from Arizona

• If you are in Canada, ships from Winnipeg, MB

Add to Wishlist
LT500 MT (88-90) Z400 Adaptor A-arm kit

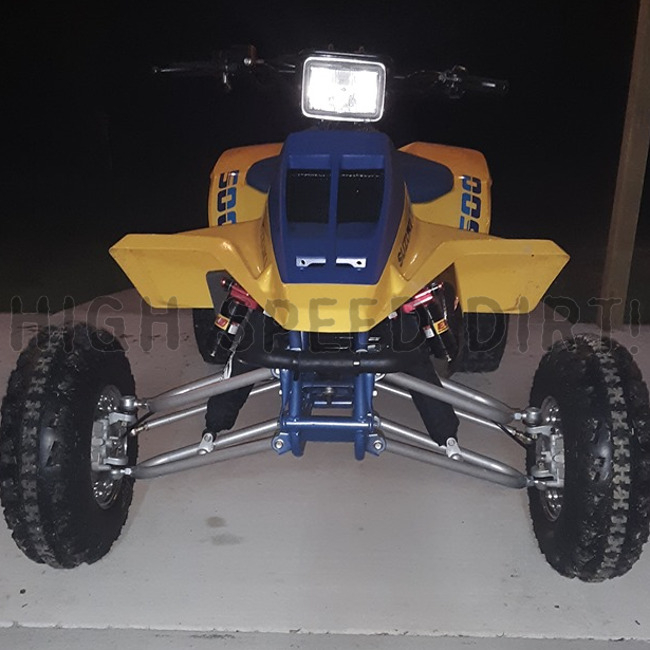

This is the Z400 Adaptor Kit for model years 1988-1990

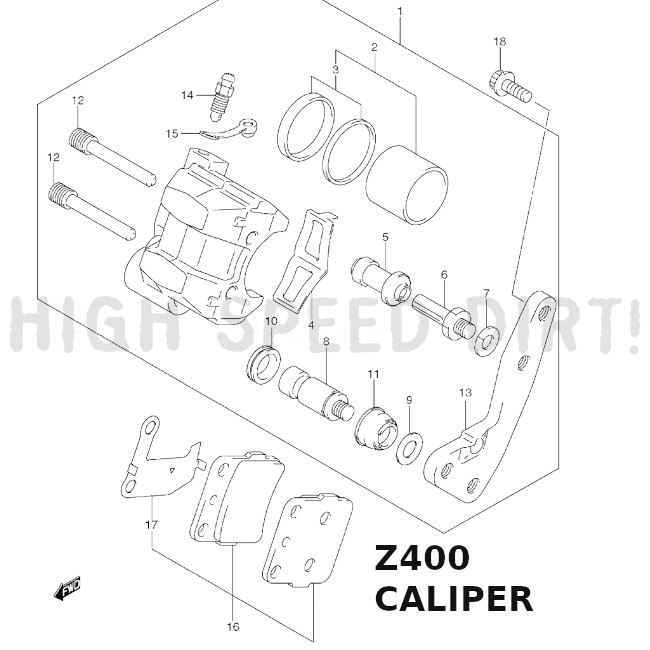

• Kit requires Z400 Spindles, Hubs, Brake Calipers (not included)

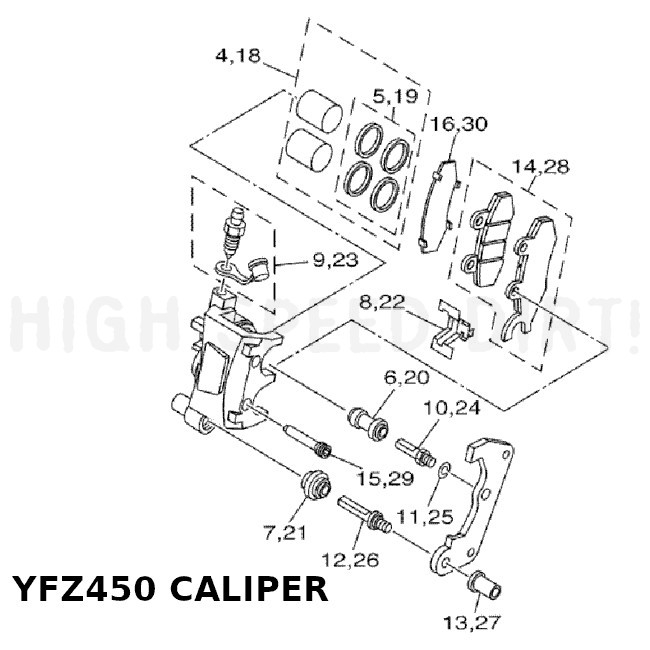

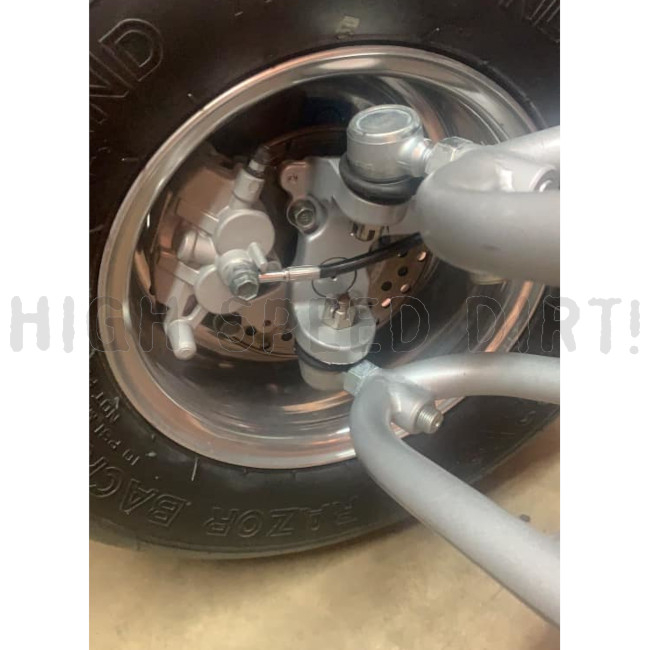

• YFZ450 2 piston calipers (not included) will bolt up to the Z400 spindle (not included)

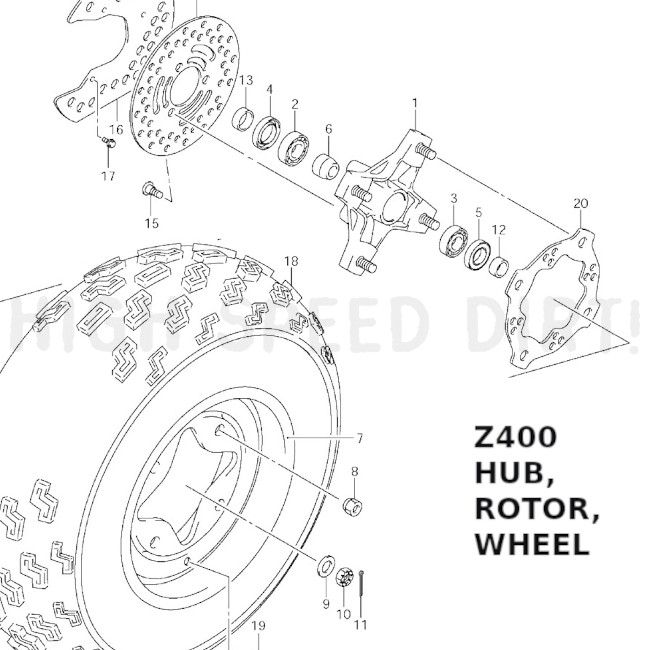

• Z400 hubs (not included) allow you to run rims (not included) with common 4/144 bolt pattern

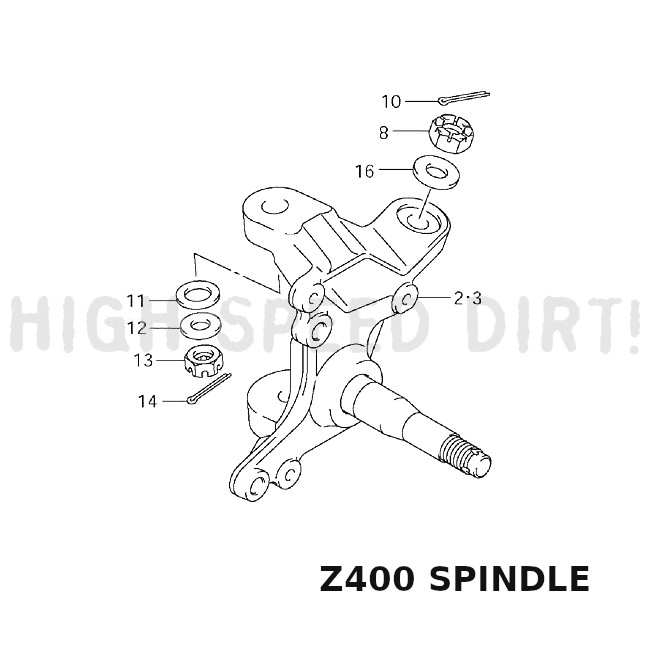

• Z400 spindles (not included) add 1.25” to overall width because of there design compared to stock spindles

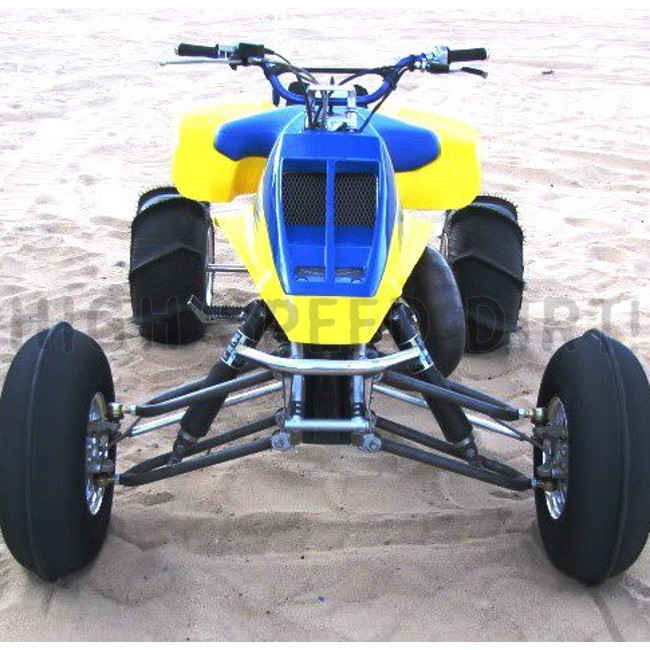

• Plus one (+1) arms with Z400 spindles (not included) would come out to approximately plus 2-2.25” (+2 to +2.25) inches per side

Specify year of Z400 Spindles when ordering
• 2003-2004
• 2005-2008

Lower A-arm Styles:
• Standard: light weight no gusset design

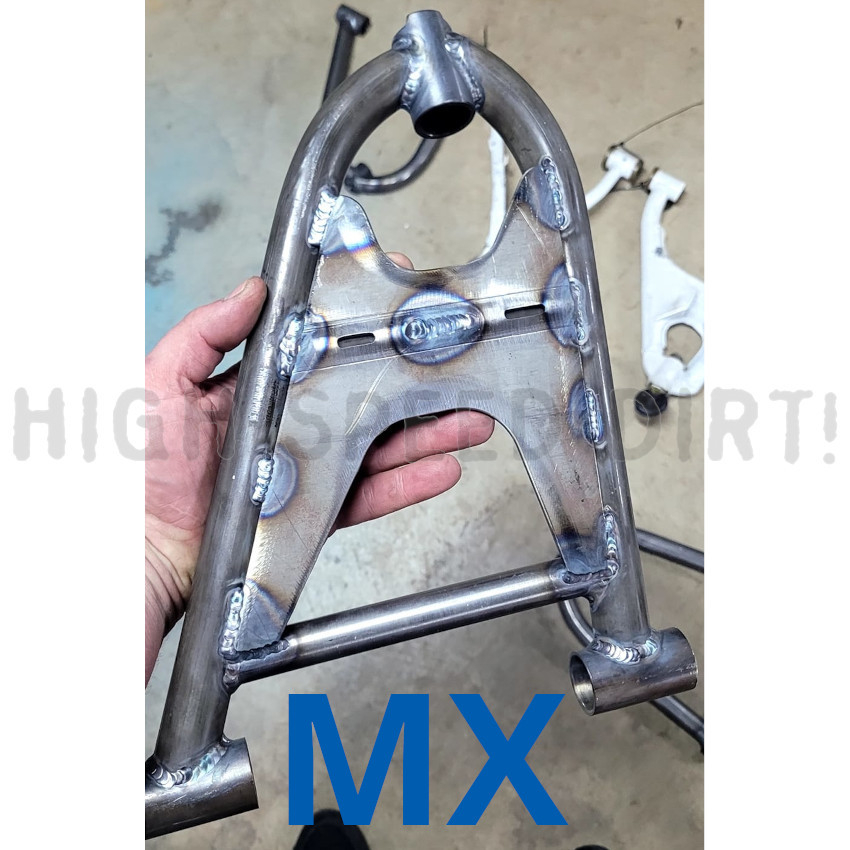

• MX Style: gusseting, bottom plating and extra cross bar at pivot tube $133

Lower A-arm Tubing Thickness:
• .065"
• .095"

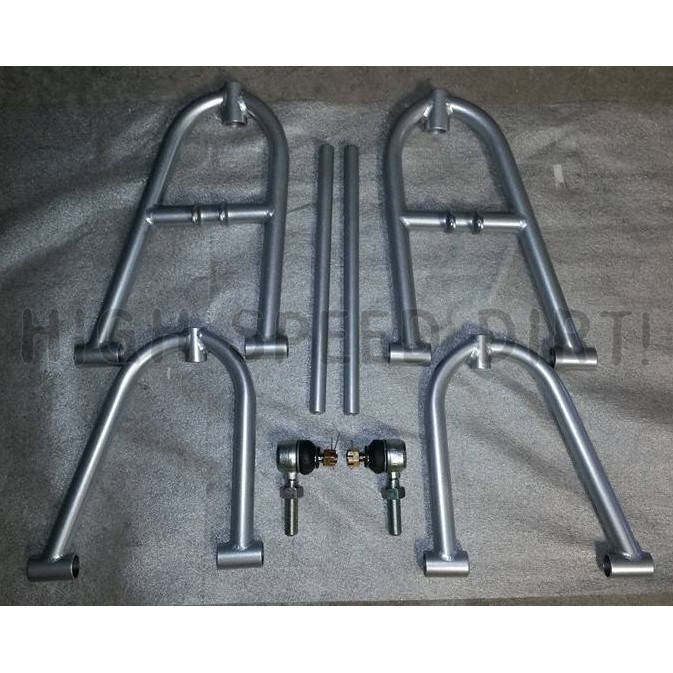

A-arm Kit comes with (4) A-arms, (2) Tie Rods, (4) Ball Joints

Metal Tech A-arms feature 4 ball joints that are- "gold" yellow dichromate metal plated to stop corrosion and a double wired on rubber boot to keep dirt and water out. The ball joints supplied are replaceable. Spindle Reaming NOT Required with MTC Fab ball joints.

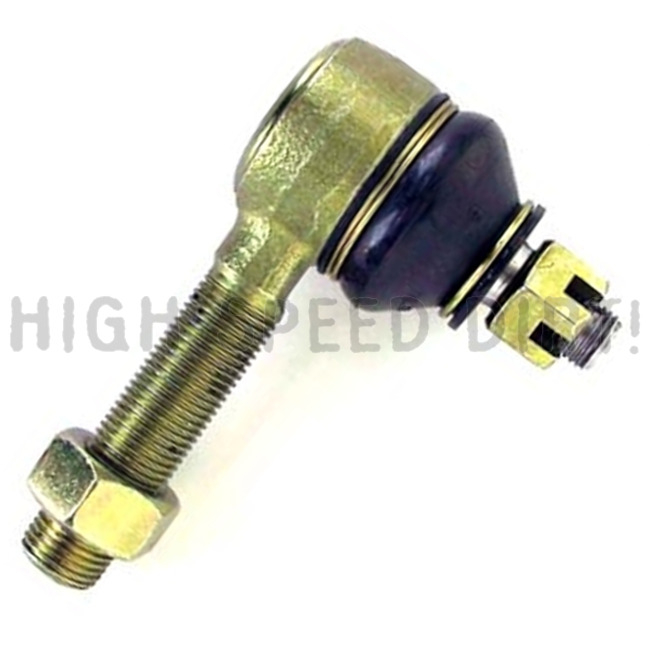

Wheel camber is adjustable on the threaded supplied 16mm upper ball joints.

• A-arms are available in -1, +0, +1, +2 widths
• A-arms are available in Zero (+0) forward or Plus 1" (+1) forward wheel position

Width/Forward Options
-1+0
-1+1
+0+0
+0+1
+1+0
+1+1
+2+0
+2+1

A-arms will be built to work with stock length shocks or 17" shocks

Extended A-arm features
    - increased cornering stability
    - increased wheel travel.

A-arms accept stock OEM LT500 Pivot Hardware

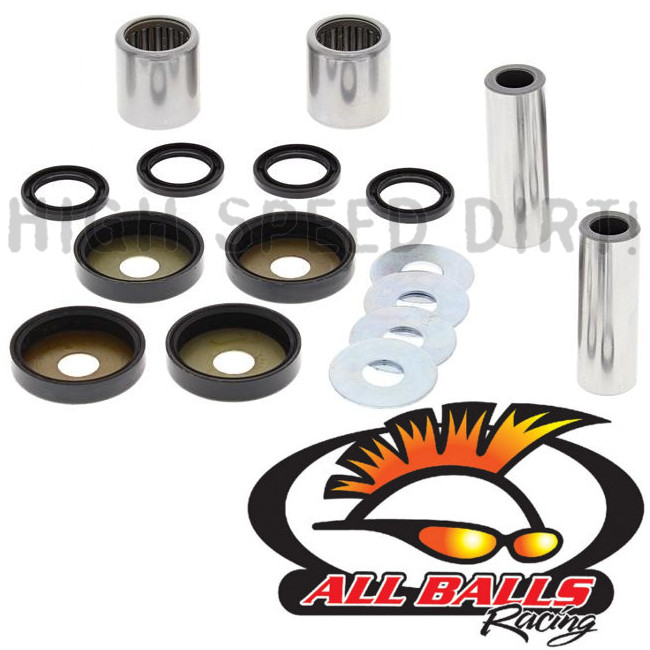

• AllBalls Pivot Kits 50-1030 $157.60
• PivotWorks Pivot Kits AAK-S05-522 $179.90

Stainless steel extended brake lines recommended for superior stopping power and they look great.

Finish: Bare Metal
1988-1990 Replaces the following

SUZUKI OEM ARM SUSPENSION, LOWER RH  52410-43B00 52410-43B10

SUZUKI OEM ARM SUSPENSION, UPPER RH  52430-43B20

SUZUKI OEM ARM SUSPENSION, LOWER LH  52420-43B00 52420-43B10

SUZUKI OEM ARM SUSPENSION, UPPER LH  52440-43B20
