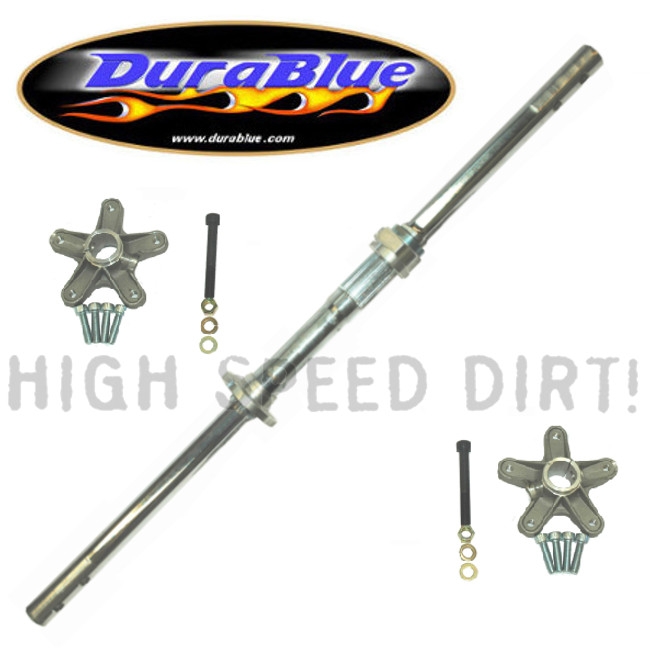

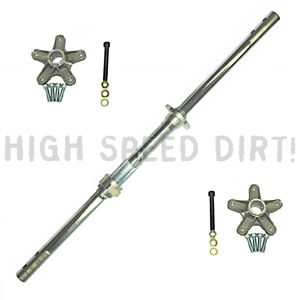

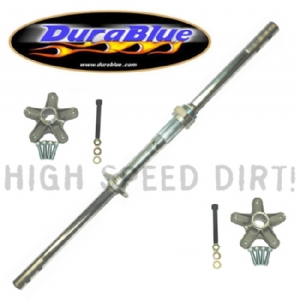

Suzuki LT250R QuadRacer Durablue X-33 Axle Adjustable 64710-19A00 01C01 01C10 01C60

1985-1992 Suzuki LT250R QuadRacer X-33 Extended Adjustable Axle uses the same superior material and heat treating as the Eliminator. The unique difference is in the design of the wheel hub mounting area. Standard design ATV axles neck down to about 1" in diameter. A splined wheel hub slides onto the axle shaft and is retained with a hex nut. As all ATVer's know, hubs loosen frequently. The X-33 changes all that. The wheel hub is clamped solid and driven by a pin on a 1-3/8" diameter shaft. This axle is rifled to reduce weight near the rotational axis of the ATV.

• 5x130mm cast hubs standard (1987-1992)

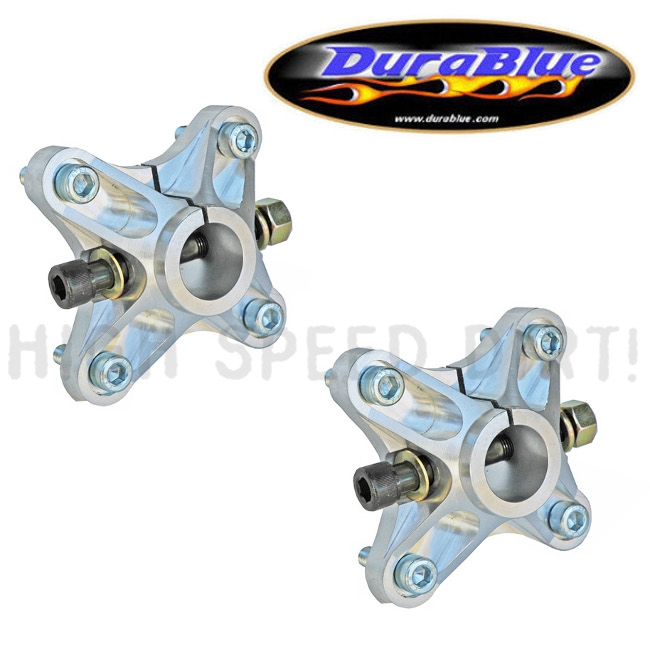

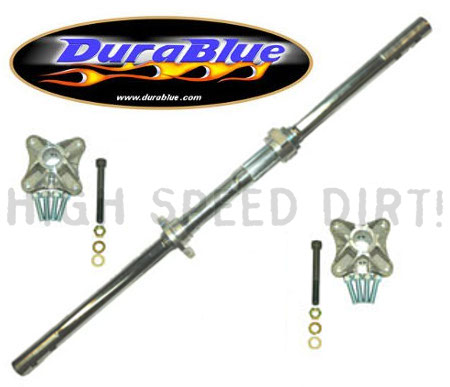

• Available w/ Honda bolt pattern 4x110mm adapter hubs in Cast or Billet so you can run Goldspeed, DWT, Hiper and OMF aftermarket rims.



5/130 Cast Hubs N/C

Part# 20-1132ex



Replaces OEM Part Numbers
F/G 64710-19A00

H 64710-01C01
K/L 64710-01C10
M/N 64710-01C60
