Metal Tech Suzuki LT250R Quadracer (87-92) A-arm kit 52410-01C10

SKU: LT250R-MT-AARMS-87
Our Price US$799.95
US$857.14
You Save 7%

 ****** Production lead time 11-15 months *****

• Custom built to your specifications

• If you don't see the "Add To Cart" button please phone order desk 888-801-8960

• If you are in the USA, ships from Arizona

• If you are in Canada, ships from Winnipeg, MB

Add to Wishlist

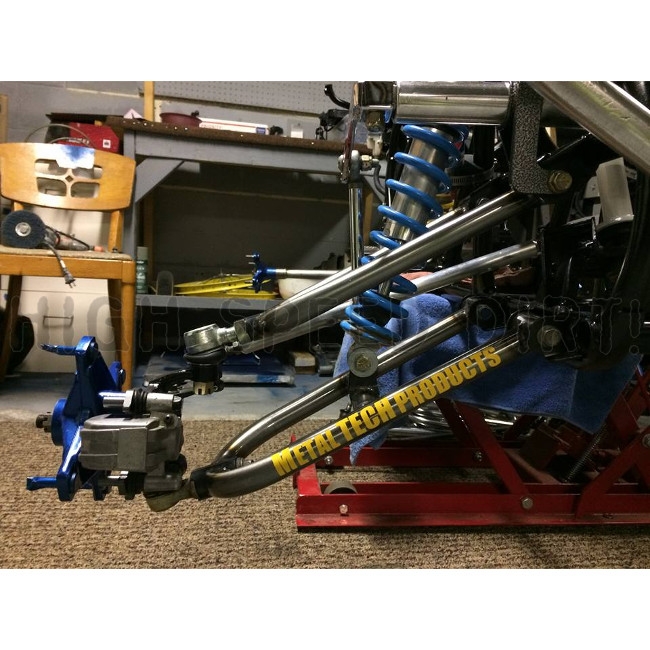

MT Suzuki LT250R Quadracer (87-92) A-arm kit
This Kit is for model years 1987- 1992 ONLY.

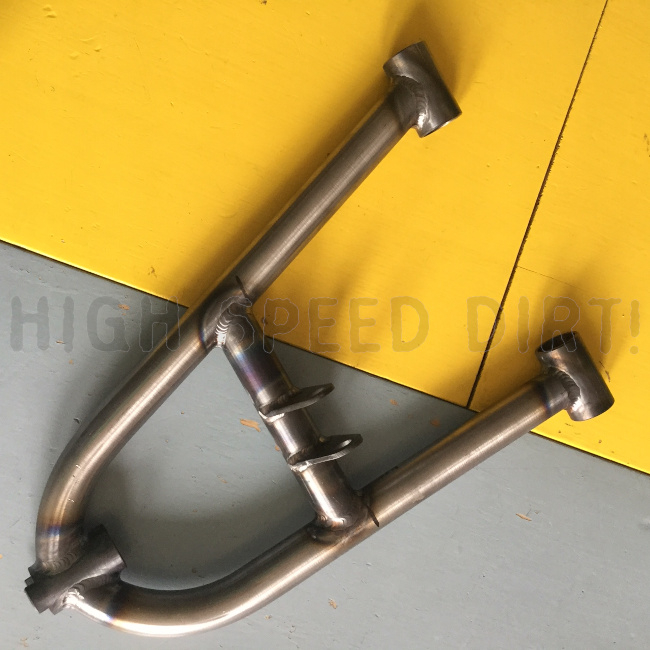

Lower A-arm Styles:
• Standard: light weight no gusset design

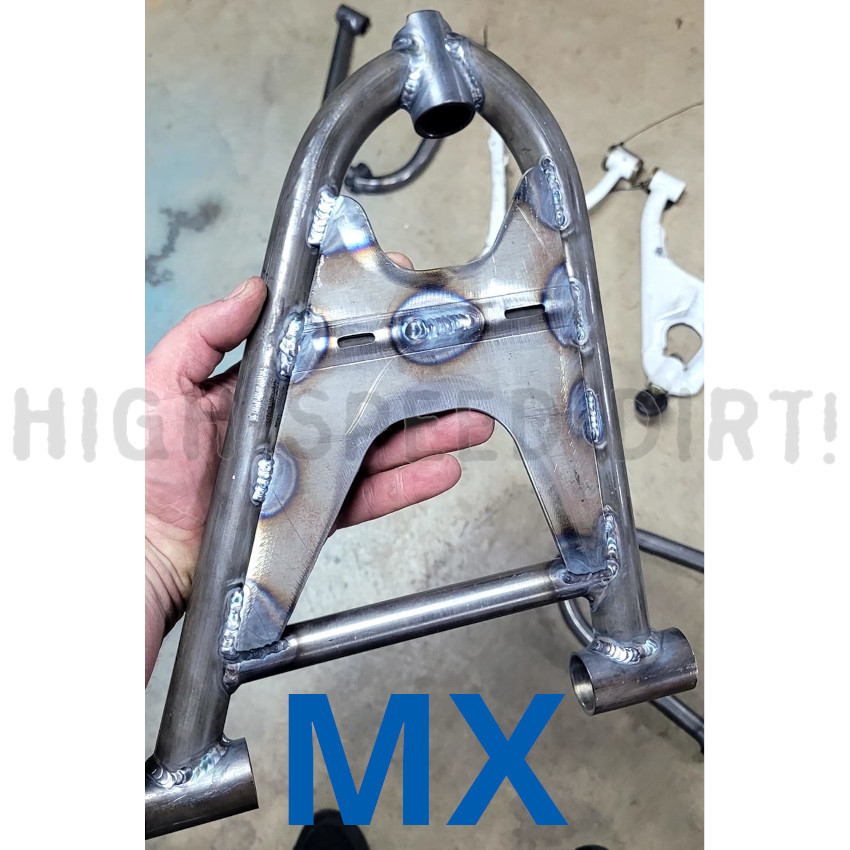

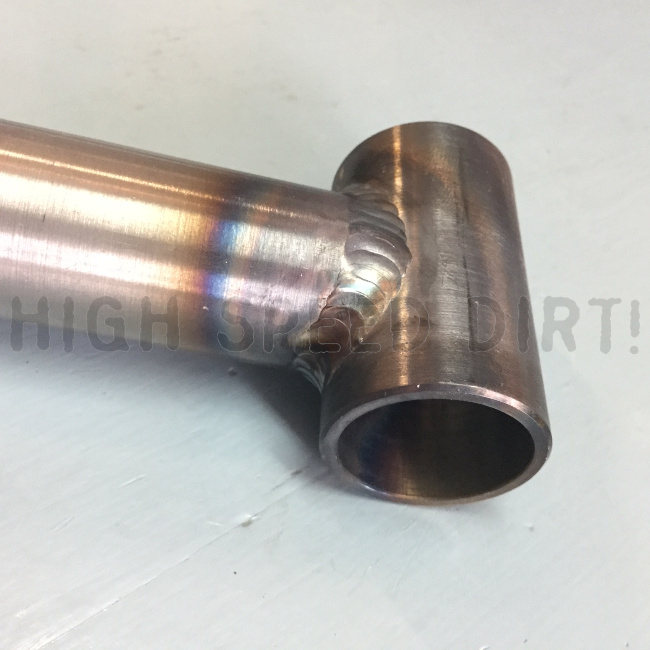

• MX Style: bottom plating and extra cross bar at pivot tube $133

Lower A-arm Tubing Thickness:
• .065"
• .095"

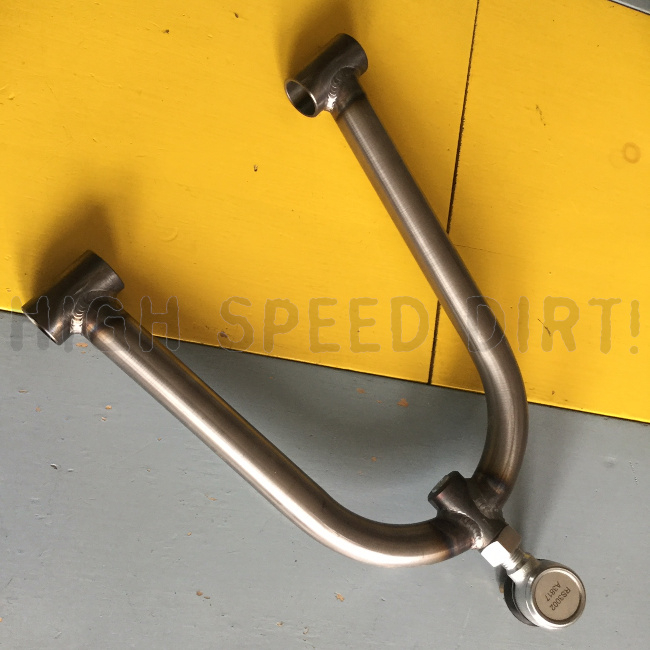

Upper A-arms are .065" wall thickness

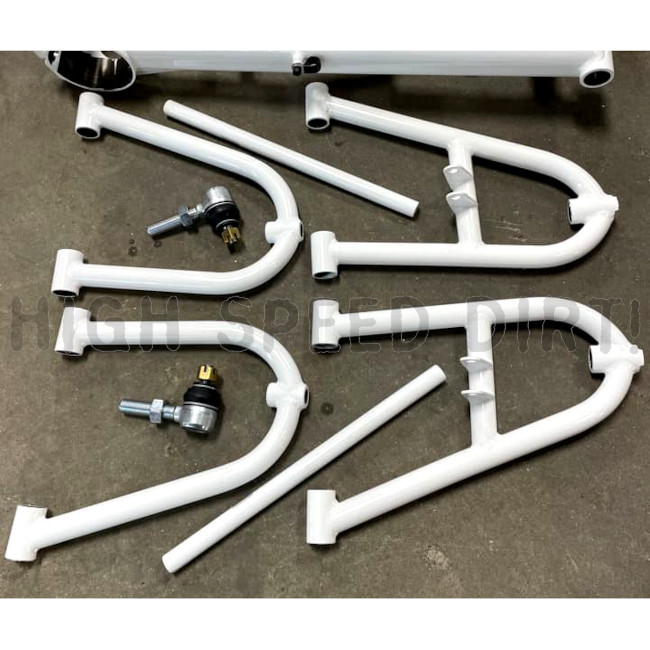

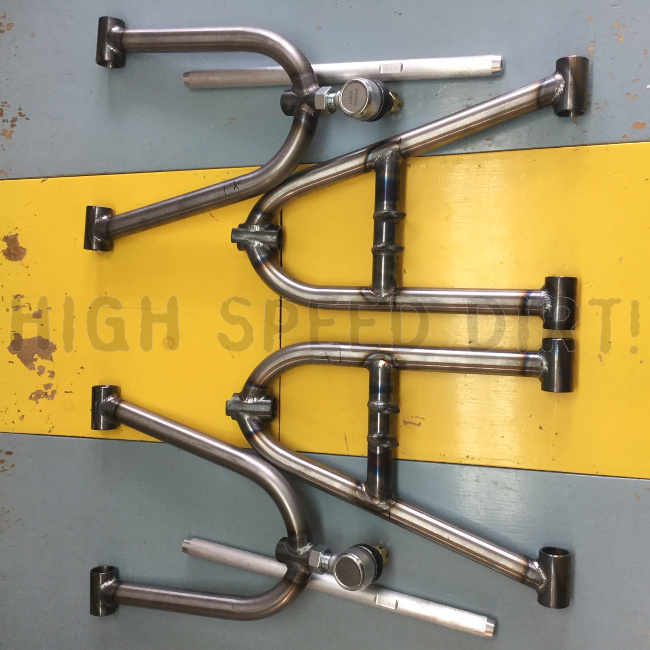

A-arm Kit comes with (4) A-arms, (2) Tie Rods, (2) Top Ball Joints

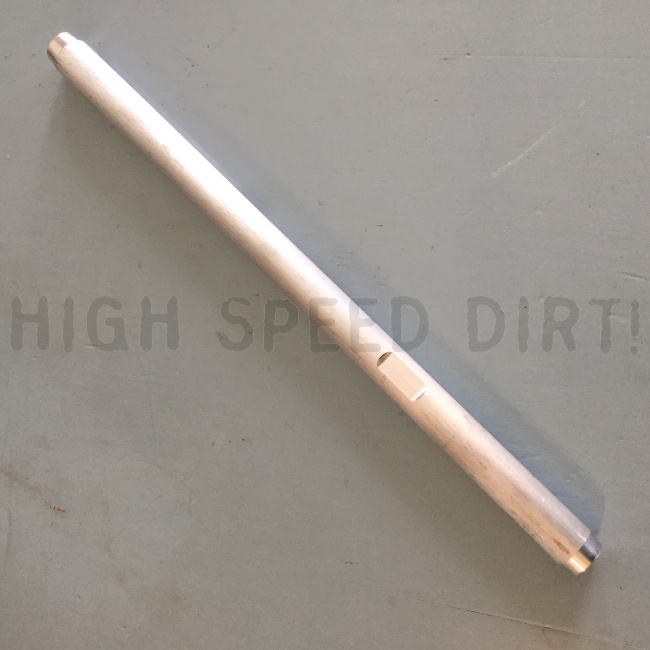

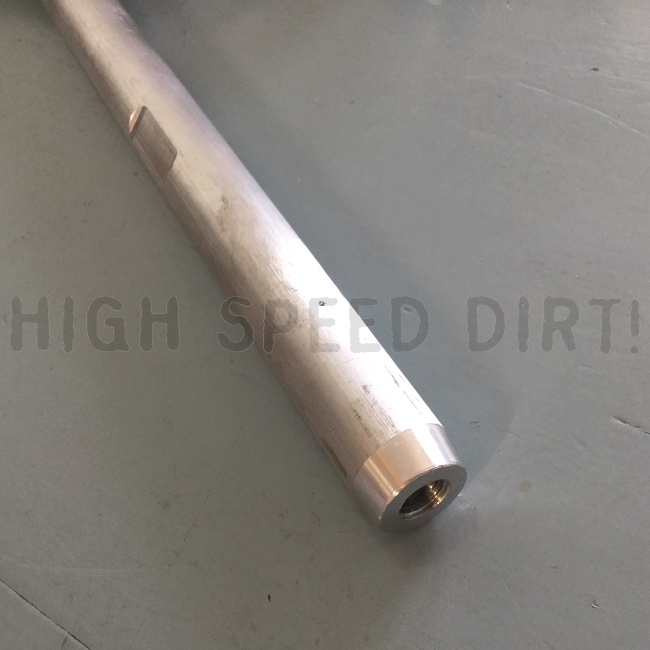

Extended Tie Rods
Available in stock M10 thread or Heavy Duty M12 thread
M10 use OEM or All Balls 51-1014 tie rod ends
M12 use All Balls 51-1017 tie rod ends

Note:
1) 87-92 A-Arms use stock Front Needle Bearings, seals, caps
    Qty (4) All Balls  50-1018 $237.72
 2) uses stock lower ball joints
    Qty (2) All Balls 42-1022 $61.52

Metal Tech A-arms feature ball joints that are- "gold" yellow dichromate metal plated to stop corrosion and a double wired on rubber boot to keep dirt and water out. Two ball joints supplied are replaceable, use your stock OEM lower ball joints. Spindle Reaming NOT Required with MTC Fab ball joints.

Wheel camber is adjustable on the threaded supplied 16mm upper ball joints.

Widths:

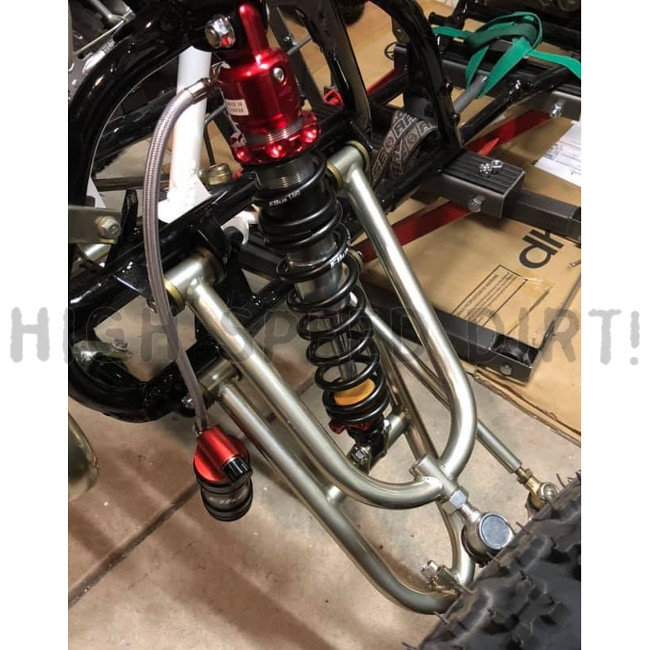

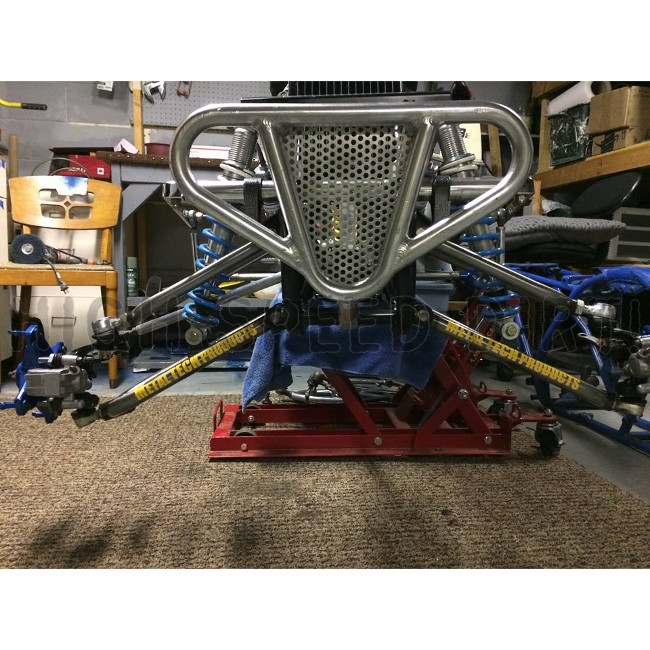

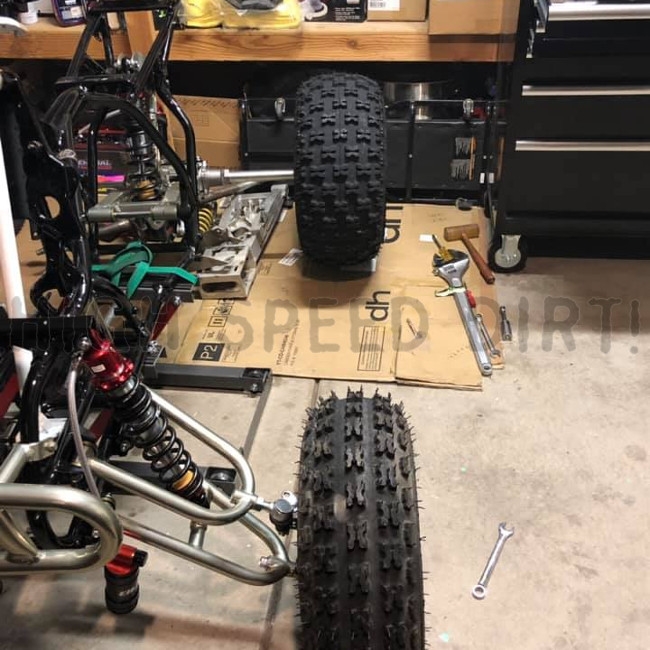

A-arms are available in +1,+2, +3 widths and will be built to work with stock length shocks or 16.25" shocks

Stainless steel extended brake lines recommended for superior stopping power and they look great.

Finish: Bare Metal
REPLACES:
1987-1992 LT250R Quadracer
Suzuki OEM ARM, SUSPENSION, LOWER RH | MODEL H/J | 52410-01C10
Suzuki OEM ARM, SUSPENSION, UPPER RH | MODEL H/J | 52430-01C10
Suzuki OEM ARM, SUSPENSION, LOWER LH | MODEL H/J | 52420-01C10
Suzuki OEM ARM, SUSPENSION, UPPER LH | MODEL H/J | 52440-01C10
